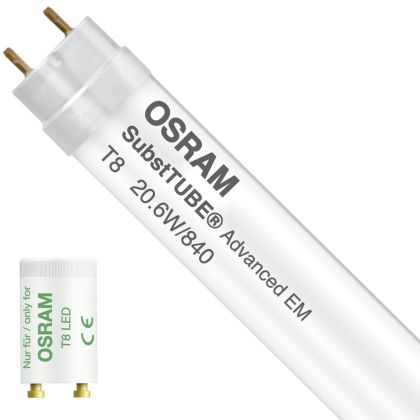

Osram LED Tube T8 SubstiTUBE Advanced (EM/Mains) Standard Output 20.6W 3100lm - 840 Cool White | 150cm - Replaces 58W
Need help?
Contact our light specialists for free advice.- Free shipping above €121 incl. TaxFree shipping above €100 excl. Tax
- Business customer? Purchase on account
- Easy returns within 14 days
Specifications
Clear
General Information
| SKU | 234068 | |
|---|---|---|
| EAN | 4058075136533 | |
| Brand | Osram | |
| Manufacturer Name | ST8A-1.5M 20,6W/840 220-240V EMFLH1 | |
|
i
The recommended quantity refers to the number of products pre-packaged by the manufacturer. When you buy this quantity, we deliver the products in the original package from the manufacturer.
|
Full box quantity | 10 |
|
i
Our all-in warranty is fully included in the product price and covers both hidden defects and technical defects of the product that occurred before delivery. The warranty period differs per product and ranges from 1 year to a maximum of 7 years.
|
Any Lamp all-in warranty | 5 Years |
| Energy efficiency class old | A++ | |
| Average Lifetime (h) | 50000 |
Technical Information
|
i
The technology indicates the operating base of a light source. The most well-known and energy-efficient example is LED. Other techniques include Halogen, gas discharge, TL (fluorescent) and the light bulb.
|
Technology | LED |
|---|---|---|
|
i
This indicates which wattage of your old/conventional lighting is replaced by this LED product.
|
Replaces (Watt) | 58 |
|
i
The wattage indicates how much energy a light source consumes. With LED lighting, the wattage is considerably lower than with conventional lighting. LED lamps with a higher wattage generally also have a higher light intensity (number of lumens).
|
Wattage | 20.6 |
|
i
When you dim lights, the full power does not have to be used. You therefore save extra on energy costs. Dimmable lamps can also be used to create an extra cosy atmosphere. Keep in mind that you need a LED dimmer to dim LED lights.
|
Dimmable | Not Dimmable |
|
i
The cap/base of a bulb is the part that connects it to the socket in the fixture. E27 (Edison screw) and E24 (small Edison screw) caps/bases are among the most popular, although this depends on your location. GU10 is generally the most common cap/base for spotlights. Check which cap/base you need carefully as many other types are also available.
|
Cap / Base | G13 |
|
i
Because you can set the direction of the light yourself, a rotatable LED tube is extra efficient with energy. Moreover, the light does not shine around 360 degrees unnecessarily, as is the case with conventional fluorescent tubes.
|
Rotatable | No |
|
i
The colour code is a combination of colour rendering (CRI) and light colour (Kelvin). The first number indicates the colour rendering (1 = very poor colour rendering, 9 = maximum colour fastness). The second and third number contains the light colour. Example: the colour code 830 consists of good colour rendering (8) and warm white light (3000K). |
Colour Code | 840 Cool White |
|
i
|
Colour temperature (Kelvin) | 4000 Cool White |
|
i
Colour rendering is also known as Colour Rendering Index (CRI) and indicates the extent to which a light source reproduces colours, compared to the actual colours in daylight. Products with a good (80-89 Ra) or excellent (90-99 Ra) colour rendering show minimal deviations in the colour spectrum.
|
Colour Rendering (Ra) | 80-89 |
|
i
The light color indicates the color of the light emitted: white, colored, or UV. For many products in our assortment, the light is white, available in a range from very warm white to daylight white (expressed in Kelvin). With colored light, you have two options: 1. A single fixed color, such as red or green. 2. RGBW, which means you can adjust the light color at any time: white or colored.
|
Colour of Light | White |
|
i
The colour control type tells you in which way you can regulate the colour of the light. You have the following options:
1. Single colour: This light has one fixed light colour. You cannot change it.
2. CCT: You choose from 2 or 3 fixed colours via a switch, such as warm white or cool white.
3. Tunable white: The white light can take any values in the listed Kelvin scale, for instance 2200K up to 6500K.
4. Dim to warm: Dimming makes the light warmer (more yellow). The more you dim, the warmer the colour.
5. RGB: You can set the light to almost any colour. From red to blue, you fill it in completely as you wish.
By choosing your preferred light colour options, you are one step closer to the right light product.
|
Light colour options | Single Color |
|
i
The number of lumens (lm) is the light output of a light source. The higher the number of lumens, the more light the light source emits. The wattage and the number of lumens are not connected to each other. An LED lamp with a low wattage can have a higher number of lumens than a conventional lamp with a high wattage.
|
Luminous Flux (Lumen) | 3100 |
|
i
The Luminous Efficacy (lm/W) indicates how efficiently a light source uses energy. We divide the number of lumens by the wattage. The higher the number, the more efficient a product is in terms of energy consumption. LED lighting has a considerably higher lumen/Watt ratio than conventional lighting.
|
Luminous Efficacy (lm/W) | 150.5 |
| Product Type Category | LED Tube T8 | |
|
i
Lighting with a sensor only turns on when it receives a specific signal. This reduces energy costs. The (built-in) sensors respond to darkness (twilight switch) and/or movement (motion sensor).
|
Type of sensor | No Sensor |
Lamp Information
|
i
You need a LED starter if the fluorescent lighting in your current fixture also contains a starter. In that case, you have a fixture with a conventional ballast (EM). A LED starter replaces your current starter and ensures that a LED tube works.
|
LED Starter included | Yes |
|---|---|---|
| Requires Ballast | No | |
|
i
A ballast can be seen as an energy regulator that switches on the lighting. Is there a starter in the fixture? Then this is a conventional ballast (EM). Fixtures with an electronic ballast (HF) don't have a starter. A LED driver can be compared to an electronic ballast and only works with LED lighting.
|
Ballast for LED Tubes | Conventional – there is a starter, Mains – Directly connected to 230V |
|
i
High Output - Gives higher lumen output vs standard tube
Standard Output - average lumen output Ultra Output - Highest Lumen out, ceiling must be over 4 metres High Efficiency - High lumen lumen / watt ratio Ultra Efficiency - LED tubes with best energy label (A + B) |
LED Tube Output | Standard Output |
| Housing | Glass | |
| Series | Substitube |
Dimensions
|
i
The most common lengths for T8 LED Tubes are 60cm, 90cm, 120cm and 150cm. For T5 LED Tubes this concerns 55cm, 85cm, 115cm and 145cm. Switching to LED? Then always check the length of your current fluorescent lighting. Do you want to know more? Then read our blog! |
Length | 150cm |
|---|---|---|
|
i
It may happen that the length of this product differs from your old lighting fixture. As a result, the product does not fit in your current fixture or in the relevant place.
|
Length (mm) | 1500 |
| Diameter (mm) | 27 |
Downloads
Description Osram LED Tube T8 SubstiTUBE Advanced (EM/Mains) Standard Output 20.6W 3100lm - 840 Cool White | 150cm - Replaces 58W
Highlights
- Osram Advanced
- Energy-efficient replacement
- Quick return on investment
- Beam angle of 190º
- Easy installation
- Cool white light - 4000K
Osram Advanced
Osram's Advanced products output a high number of lumens per watt. That means they produce the same amount of light as their fluorescent tube equivalents while using far less energy.
Energy-efficient replacement
This Osram Advanced SubstiTUBE is 150 cm long and only uses 20.6 watts of power to replace a fluorescent tube that uses 58 watts. That means energy savings of 60%. It has the best possible energy label of A++ making it the greenest choice for lighting.
Quick return on investment
Even though LED tubes are a little more expensive to buy initially, the cost can be quickly earned back due to better energy efficiency. This is often within 2 years (depending on use) and, of course, you'll continue to save money throughout its entire 50,000 hour lifespan! It's also covered by an all-in warranty of 5 years.
Beam angle of 190º
Fluorescent tubes distribute light over 360º which means light is also directed upwards where it's not needed. This LED tube, on the other hand, has a beam angle of 190º. This means light is only directed downwards and to the sides where it's needed most. The tube can even be rotated so that you can aim the light just where you need it most.
Easy installation
This tube is suitable for fixtures that have a conventional ballast and comes complete with a starter. It has the same G13 caps as a fluorescent tube so it can be used as a direct replacement.
Cool white light 4000K
This tube has a colour temperature of 4000K and emits a cool white light that helps to keep people focussed and alert. That's why this colour temperature is often chosen for use in offices, for instance.
